Compass Lift-up Door Catches Agile (pair)
by
Emuca
SKU: 1213115
(0 in cart)
Shipping calculated at checkout.
Product Features

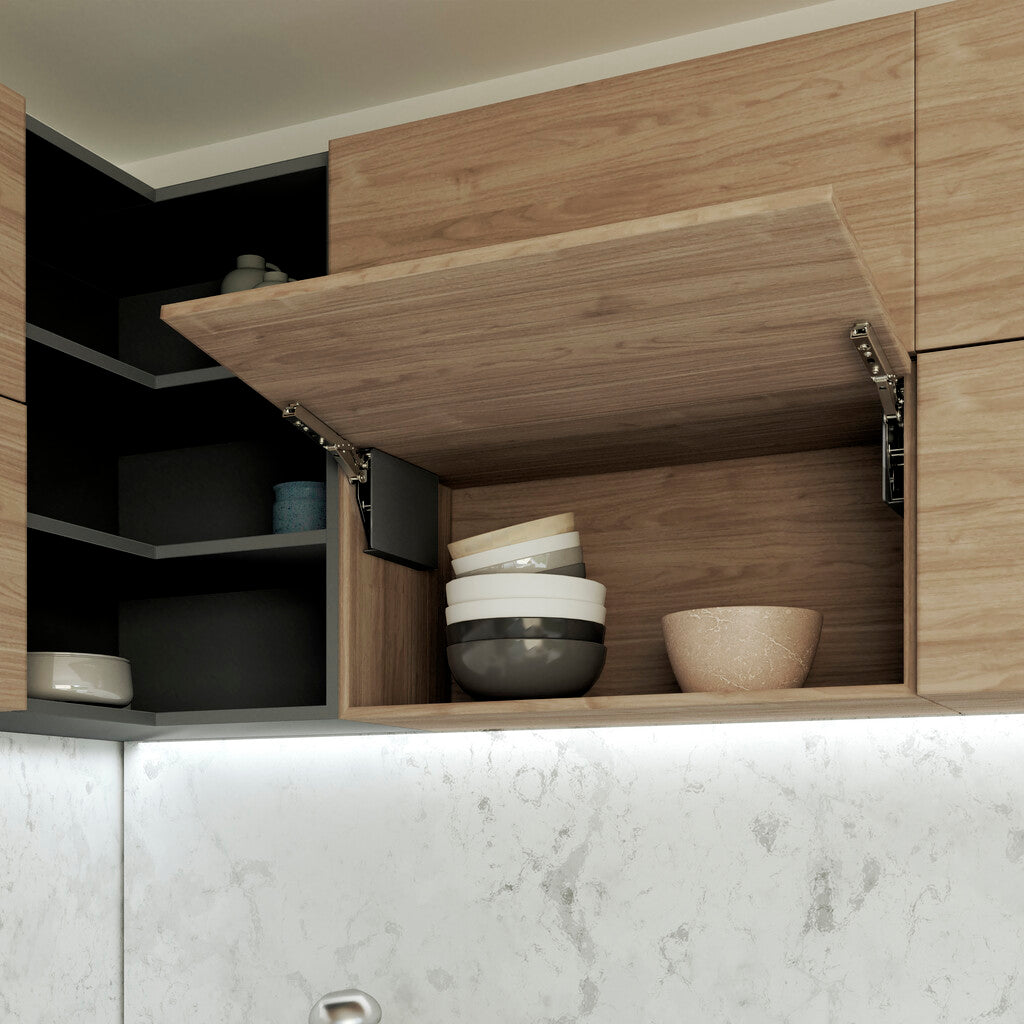

- System of springs designed for lift-up doors with hinge-free assembly.

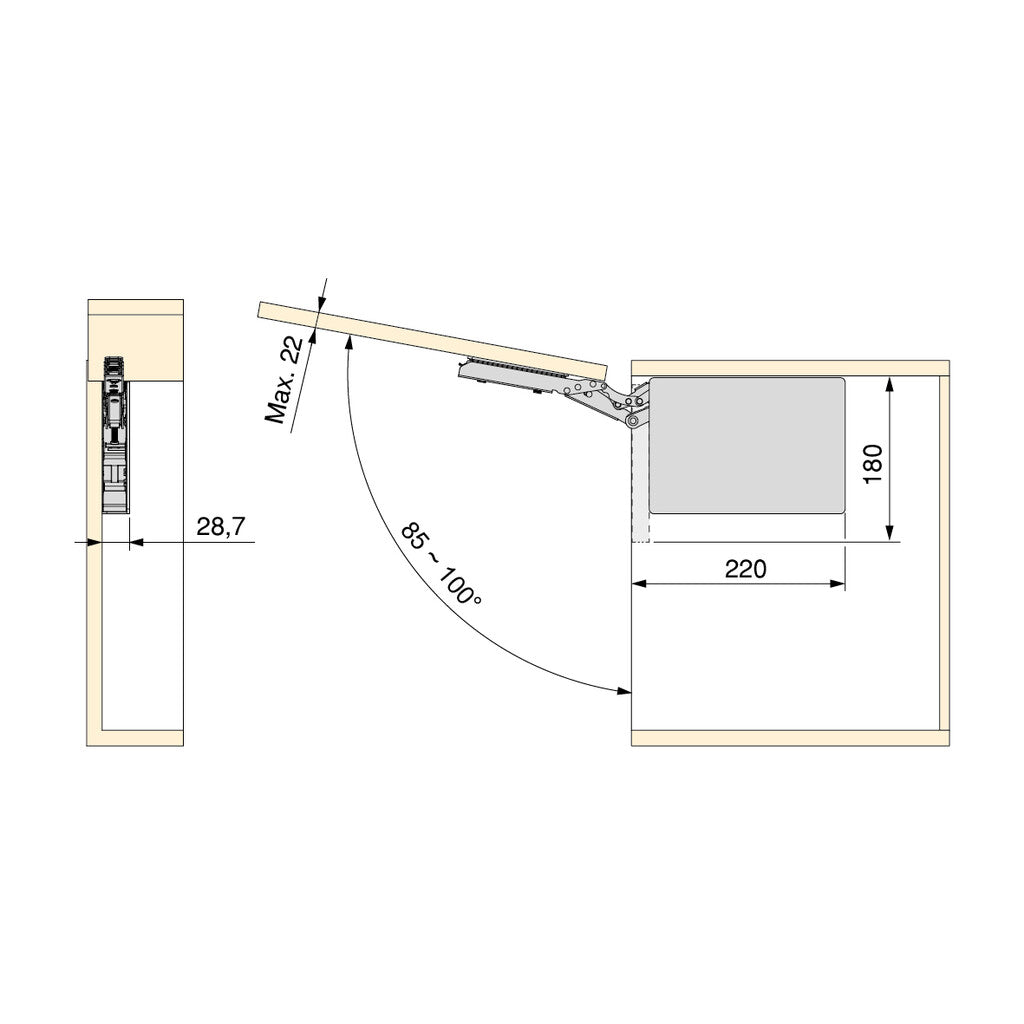

- Door opening angle of 107º in order to make the most of space and facilitate accessibility.
- For modules with a width of up to 1,200 mm and a height of between 250 and 500 mm, with board thicknesses of between 16 mm and 28 mm.
- It has three adjustments: adjustment of the strength of the mechanism, three dimensional position of the door ±2mm, and adjustment of the speed of soft closing.
- Disassembly of the door without tools via its easy clip system.
- Springs for required strengths between 960 - 2040 (see formulas).

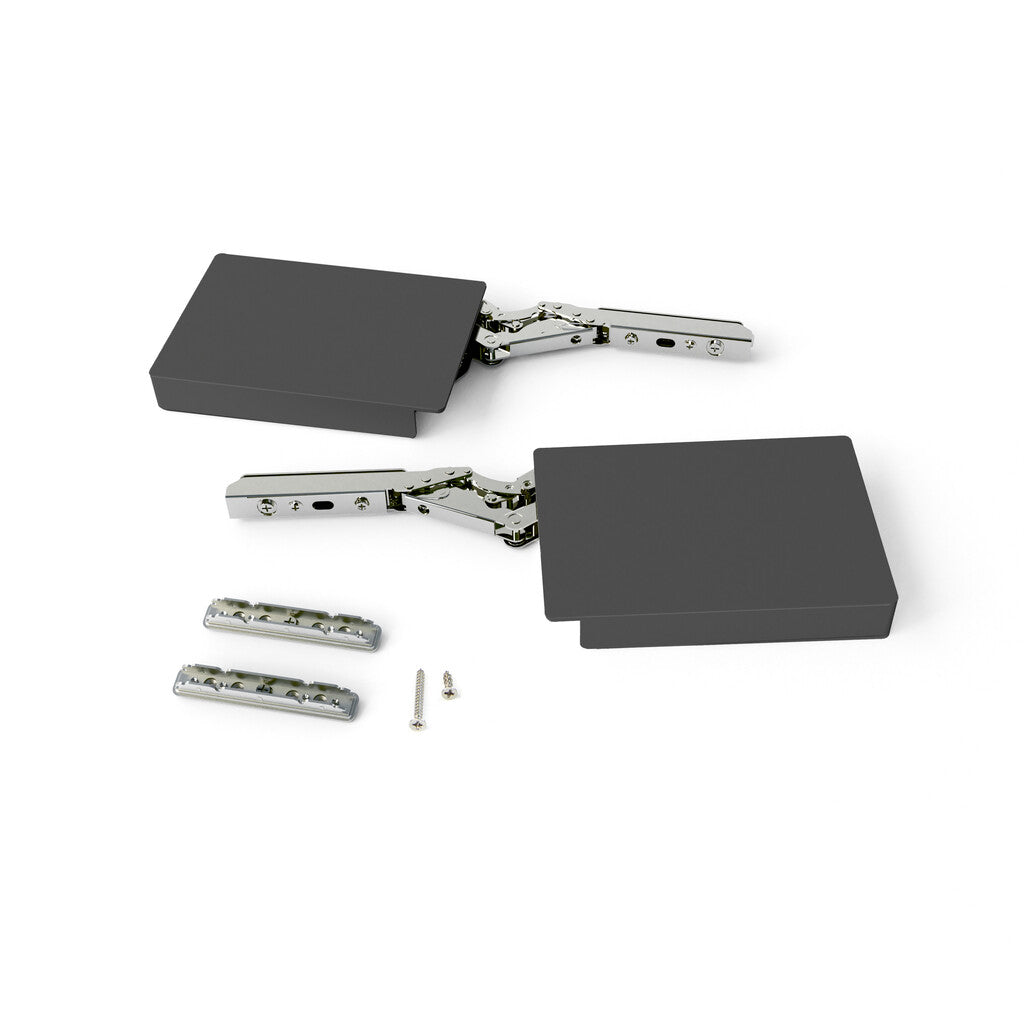

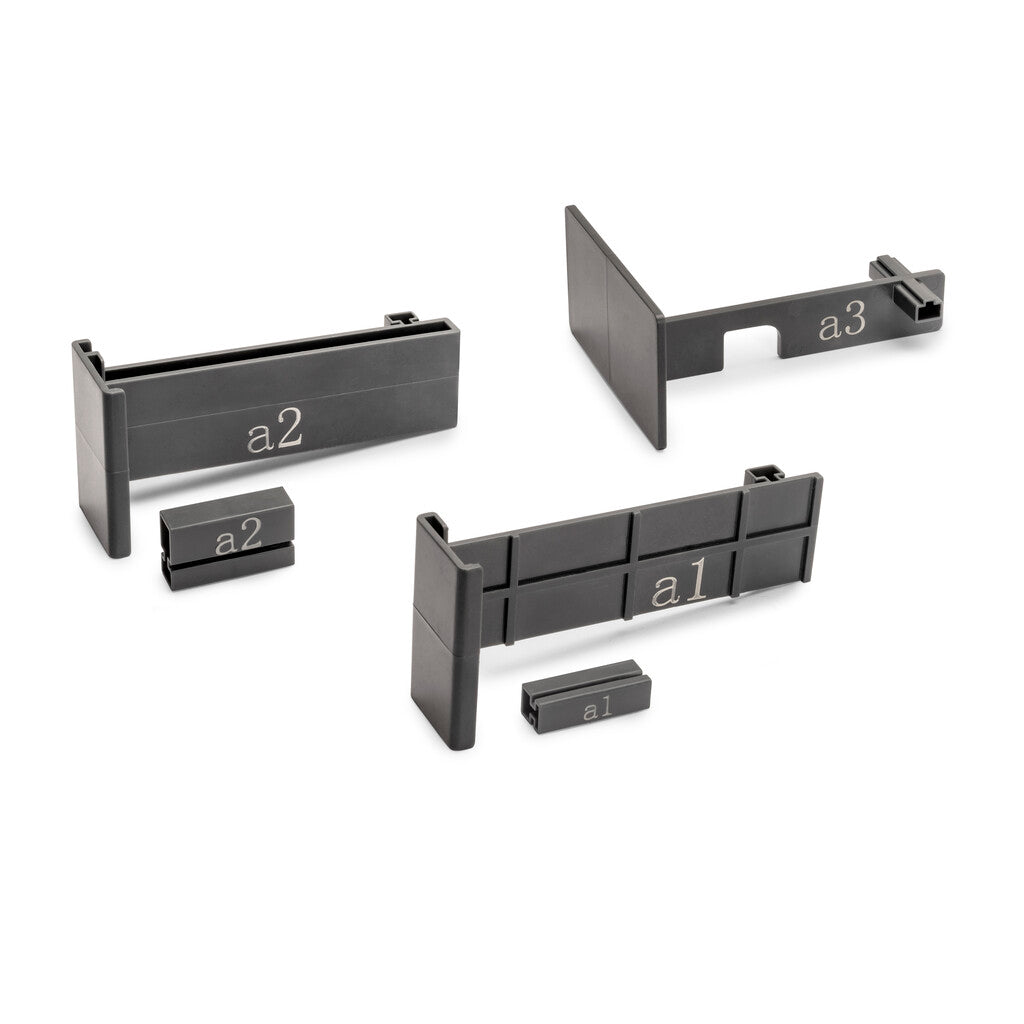

- The set of springs includes the hooks, screws for fastening and incorporates the marking template.
- Includes the covering caps in white colour.
