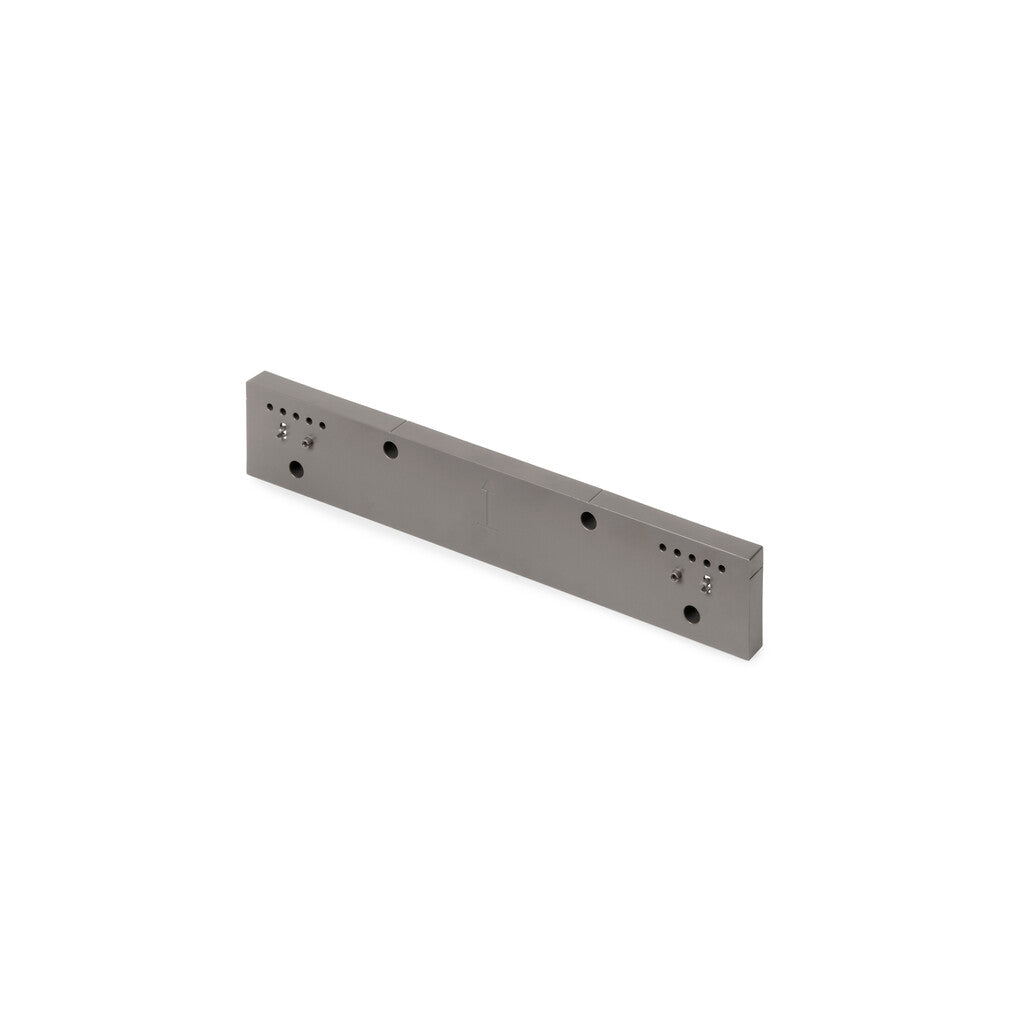

Emuca Quarts Frame Side Space

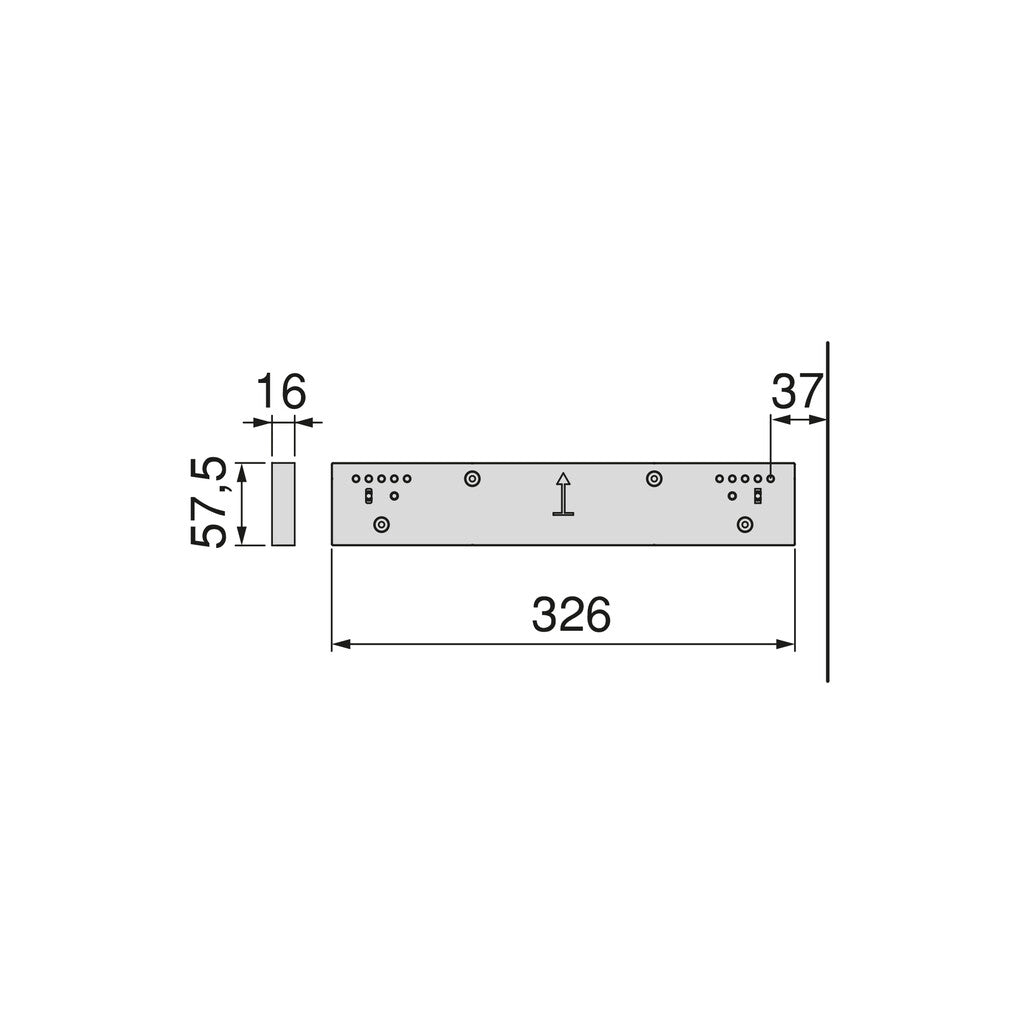

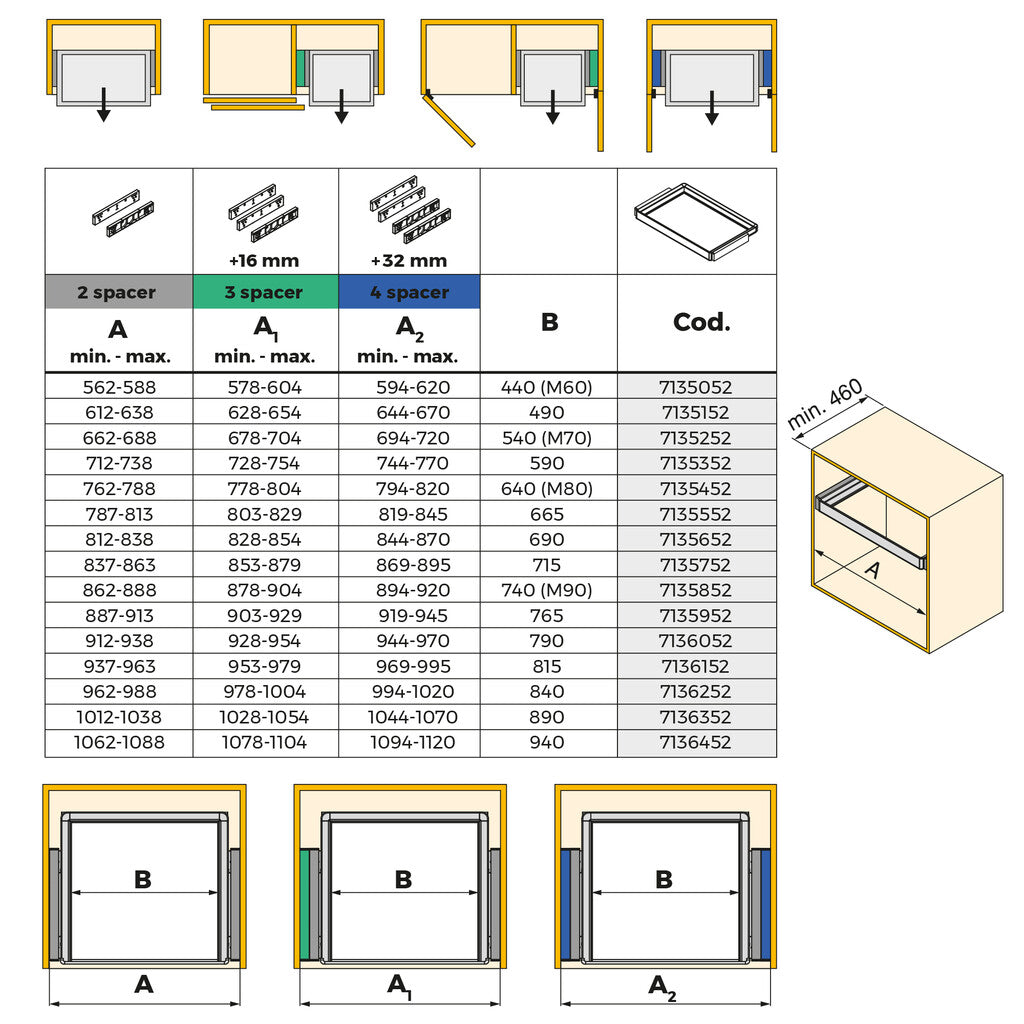

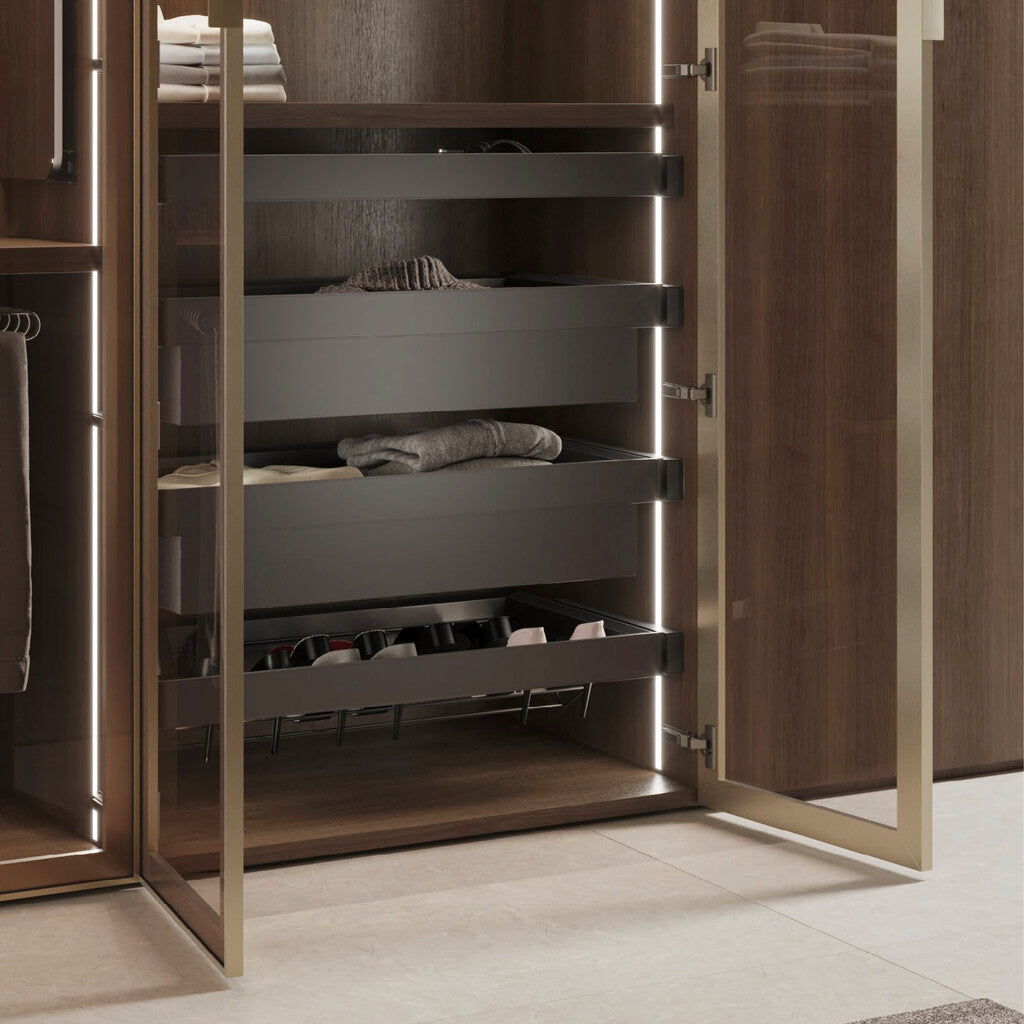

The Quartz side spacer is designed to be installed in cabinets with hinged or sliding doors together with the Quartz pull-out frame. A spacer is required on the side of the wardrobe where it coincides with the door and is installed in the place where the guide goes. Its function is to leave a space of 16mm between the frame and the side of the wardrobe so that it does not collide with the door when opening the frame.

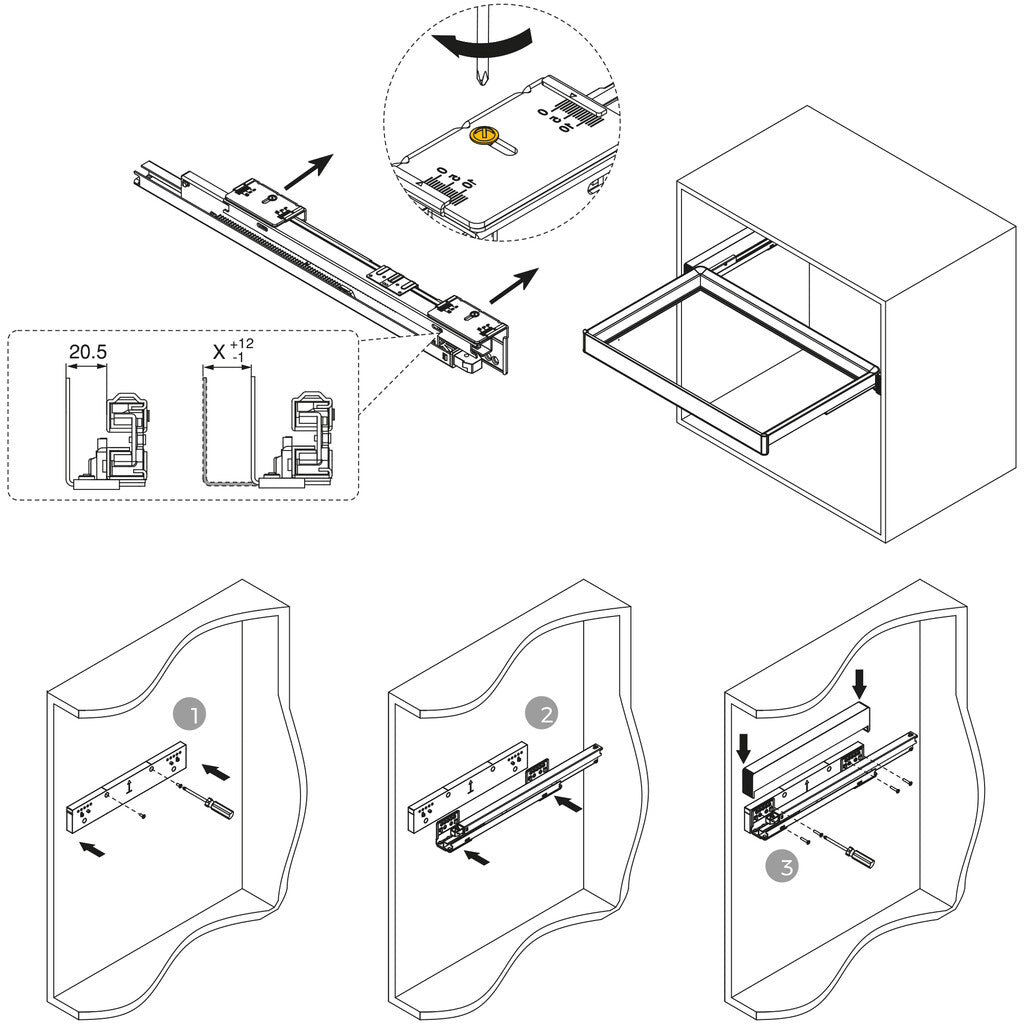

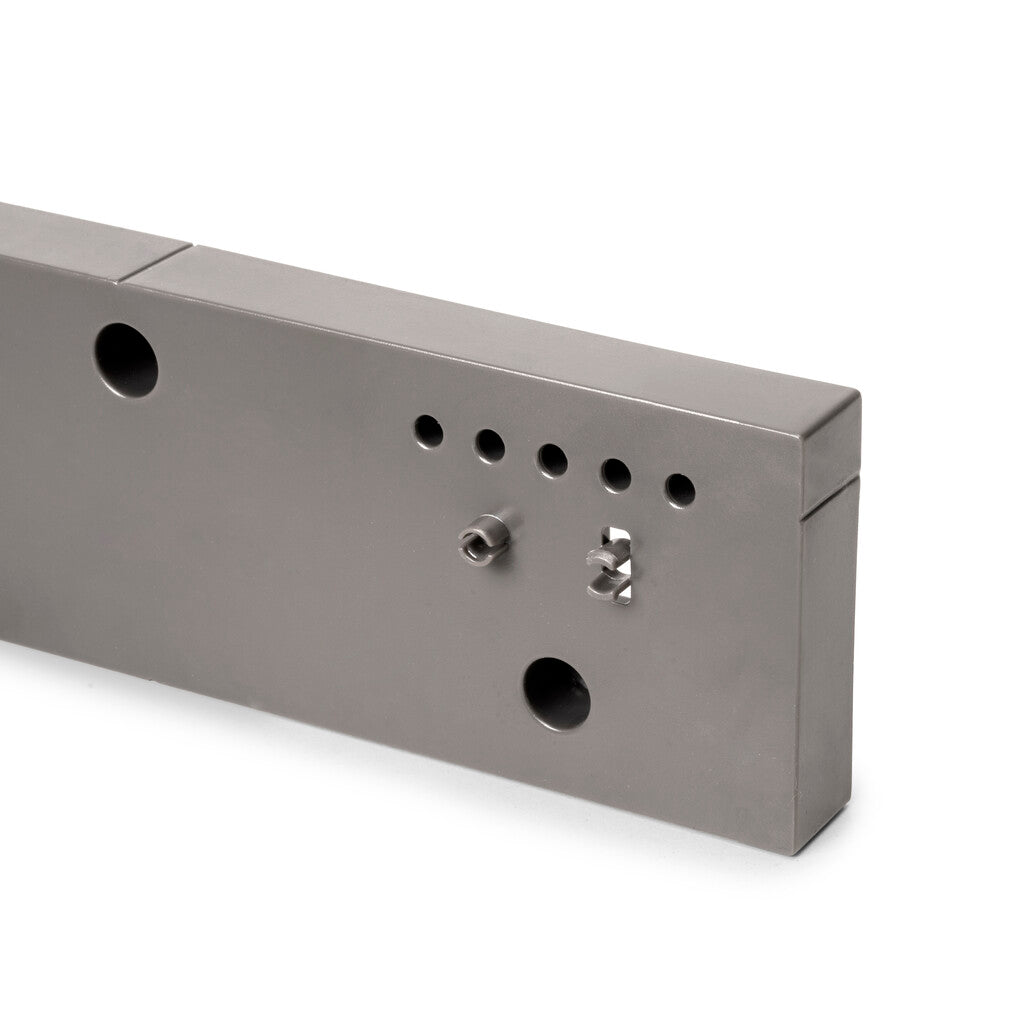

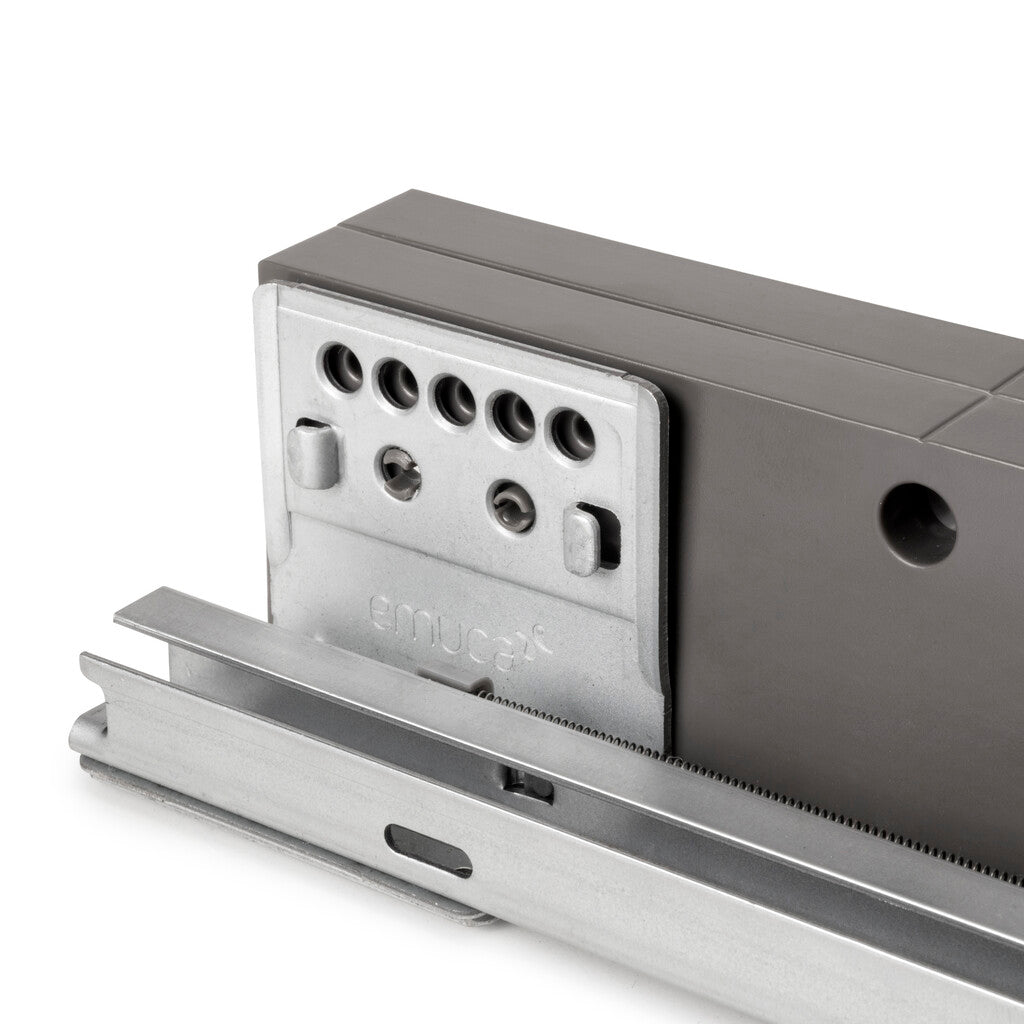

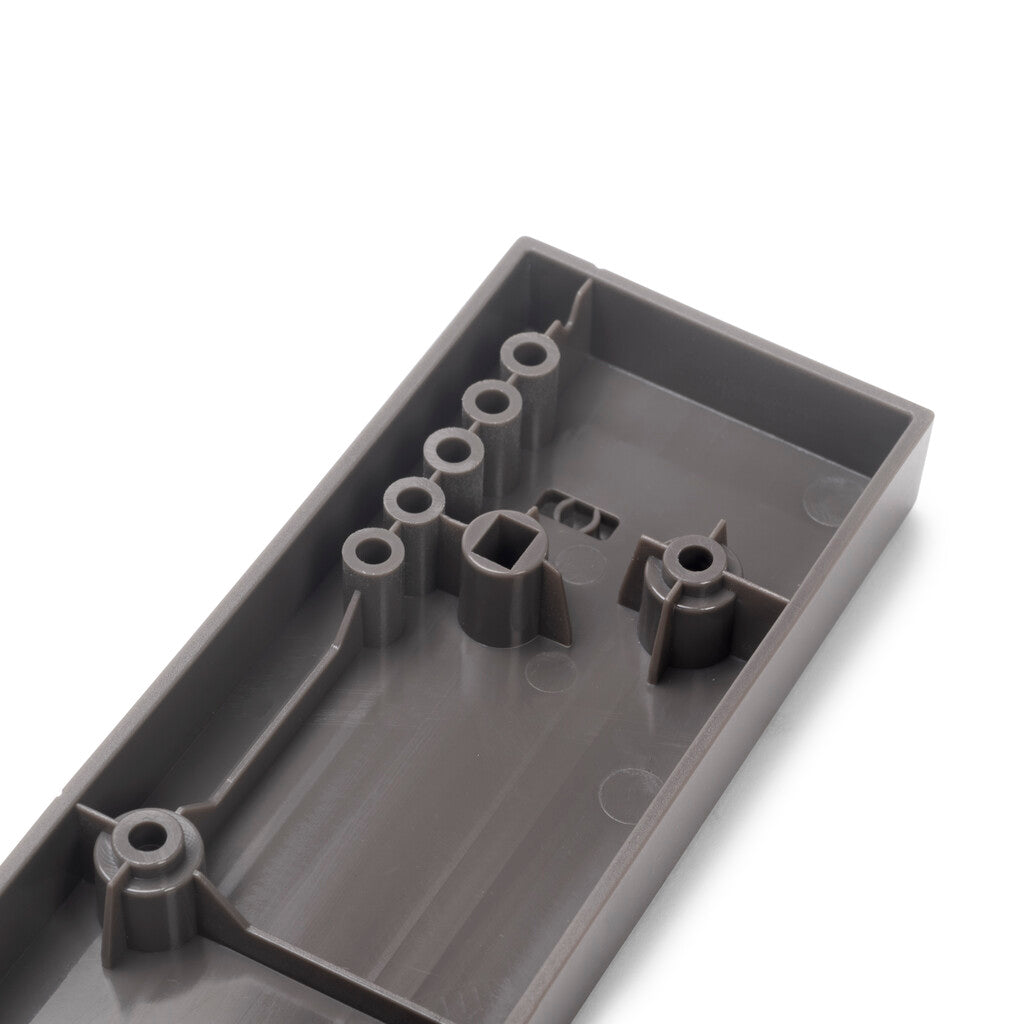

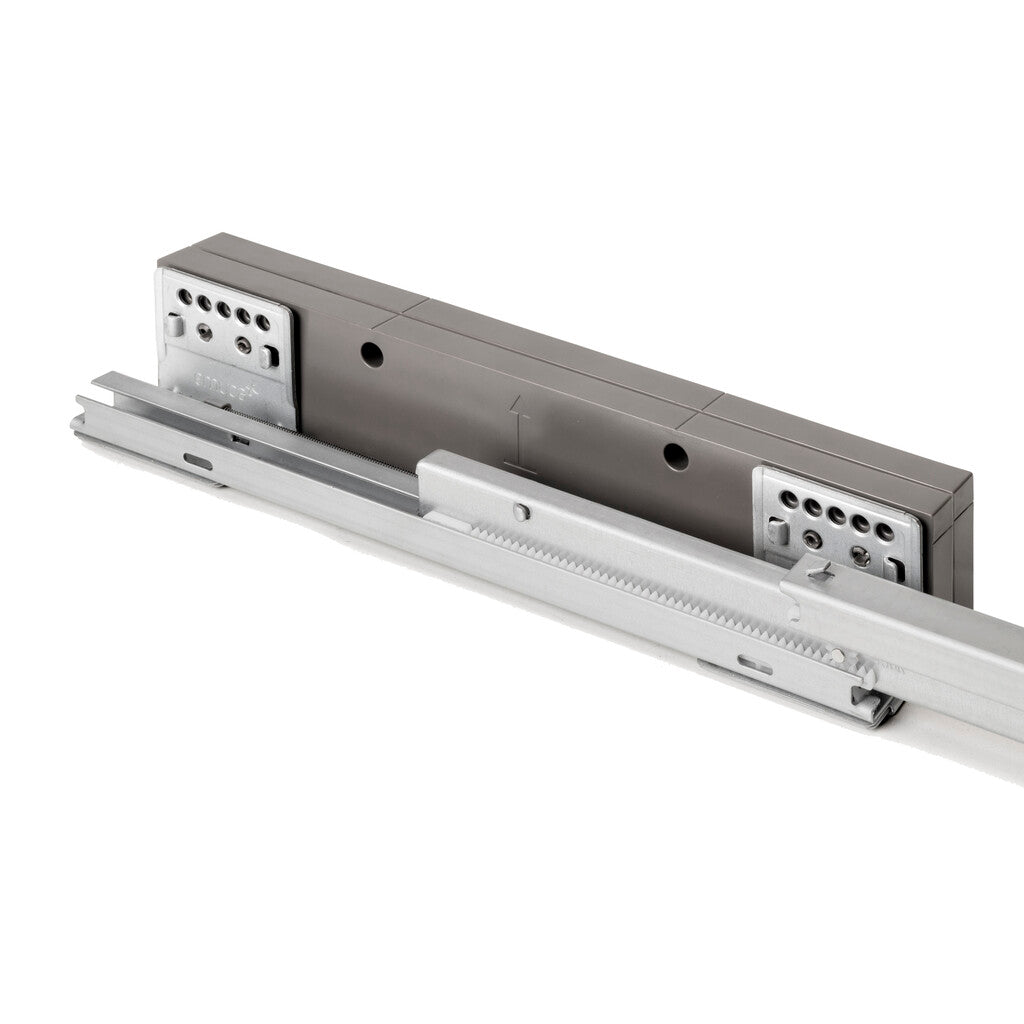

The spacer is first installed on the cabinet with Ø3.5x45mm screws, then the guide can be premounted on the spacer with clips that it incorporates and then the whole assembly is attached to the side with Ø3.5x35mm screws. It is made of plastic with a titanium finish, and stands out for its versatile design, which allows it to be used on both the right and left side of the module.

1 spacers, 8 screws Ø3,5x45mm, 4 screws Ø3,5x35mm
