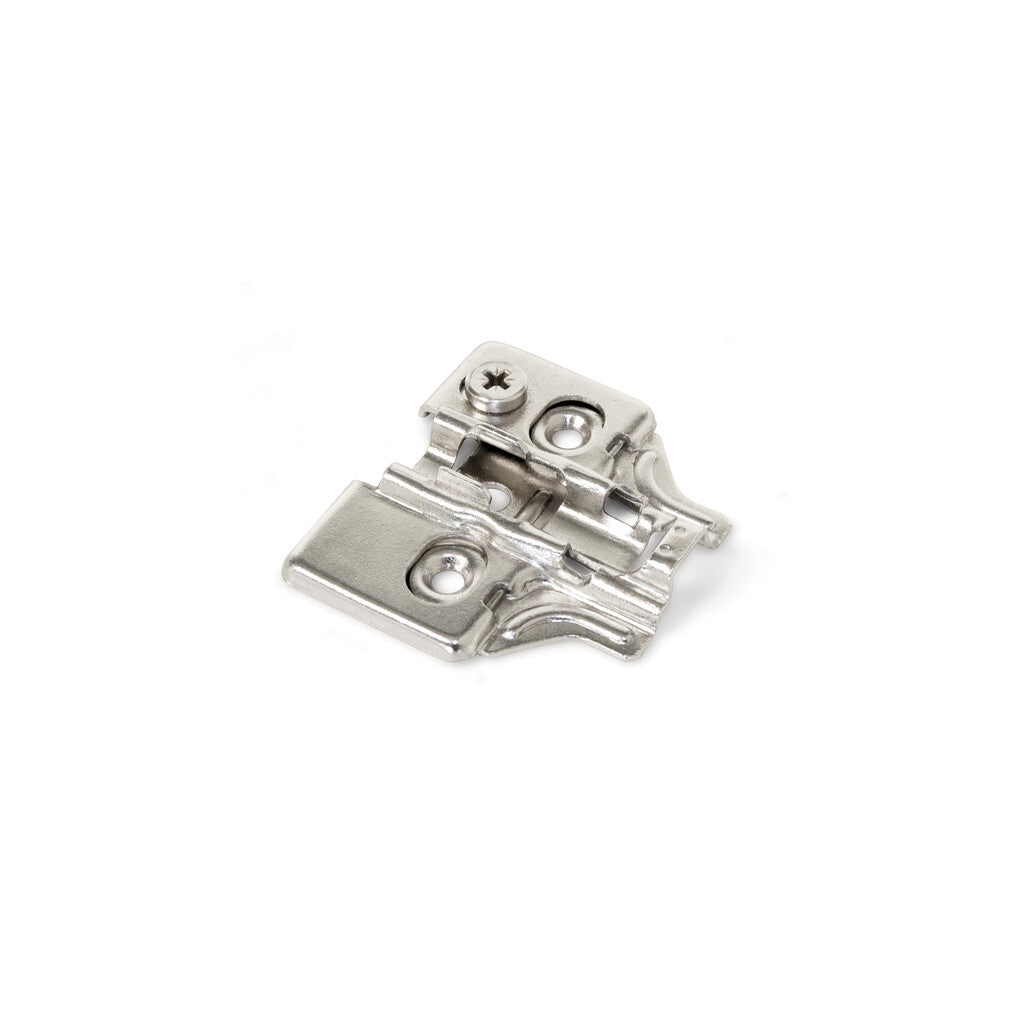

Emuca X91/X92 Screw-on Plate with eccentric adjustment - Height 0

The X91 supplement to screw with eccentric adjustment Nickel-plated is designed to hold the hinges of the X91 series, its eccentric adjustment gives it greater precision and an adjustment range of ± 2 mm. It is a supplement compatible with spacers and wedges. It is installed with screws that are located 32 mm from each other and 37 mm from the inner edge of the door. It is made of steel and nickel to provide resistance and protection to the piece.

The titanium finish inserts are provided with the 4 mm x 15 mm titanium finish screws.

1 plate
